How to Draw a Room to Scale: A Simple Floor Plan Guide

If you’ve ever wanted to learn how to draw a room to scale, I’ve got you. I’ll show you two simple ways to create a scaled floor plan by hand. If you can use a tape measure and draw a straight line with a ruler, you can do this!

This guide is for real-life room planning. You’ll learn how to measure your room, sketch the basic shape, draw your room to scale using graph paper or plain paper, and make furniture templates so you can test different layouts.

Drawing a room to scale lets you see whether your furniture will actually fit before you move heavy pieces around or spend money on something new.

This is essentially the same space-planning process designers use when working by hand instead of with design software.

This tutorial is not for creating professional architectural plans. I won’t cover elevation drawings, construction drawings, new-home design, or house plans.

This is just for building basic floor plans for helping with furniture layout, drawing your room shape, how to draw windows, doors, and other simple structures in your room. If you need precise floor plans then I would contact a designer for help.

This post may contain affiliate links. If you choose to purchase a recommended product, I may receive a small commission at no additional cost to you.  Rest assured that I will not recommend any product that I would not use myself. For our full policies and disclosures click here.

What You’ll Need to Draw a Room to Scale

• Tape measure
• ¼-inch graph paper
• Ruler or Architectural Ruler
• Pencil
• Eraser
• Scissors for the furniture pieces
• Optional: Laser Distance Measuring tool
• Optional: Drafting Template

You probably already have most of these supplies at home, so there’s no need to buy anything fancy.

what does Drawing to “Scale” Mean?

Drawing to scale simply means that every measurement on your paper represents a larger measurement in the actual room. For example, if you decide that 1 square on your graph paper equals 1 foot in the room, a 12-foot wall would be drawn 12 squares long.

The important thing is to choose one scale and use it consistently for the walls, doors, windows, furniture, and everything else you add to your floor plan.

For most beginners, the easiest option is to use ¼-inch graph paper and let one square equal 1 foot. If your room is too large to fit on the page, simply use a smaller scale, such as one square representing 2 feet.

Why Draw a Room to Scale Before Decorating?

Drawing a room to scale can save you a lot of time, energy, and money.

If you want to rearrange your furniture, you could spend hours moving heavy pieces around until you finally find a layout that works. Or you can test different arrangements on paper first and see what fits before you lift a thing.

A scaled floor plan is also helpful when you’re shopping for new furniture. There’s nothing worse than waiting weeks for a new sectional only to discover that it doesn’t fit the room. UGH! Measuring first and drawing your room to scale can help you avoid an expensive mistake like that.

Think of it as doing the heavy lifting on paper. You can move the furniture around on your floor plan until you find a layout you like—without actually moving a single piece in the room. Much easier on your back, too. 😉

Note: I’m using my own 16′ × 20′ living room as the example throughout this tutorial. I’ll walk you through the same steps so you can draw a room to scale using measurements from your own home.

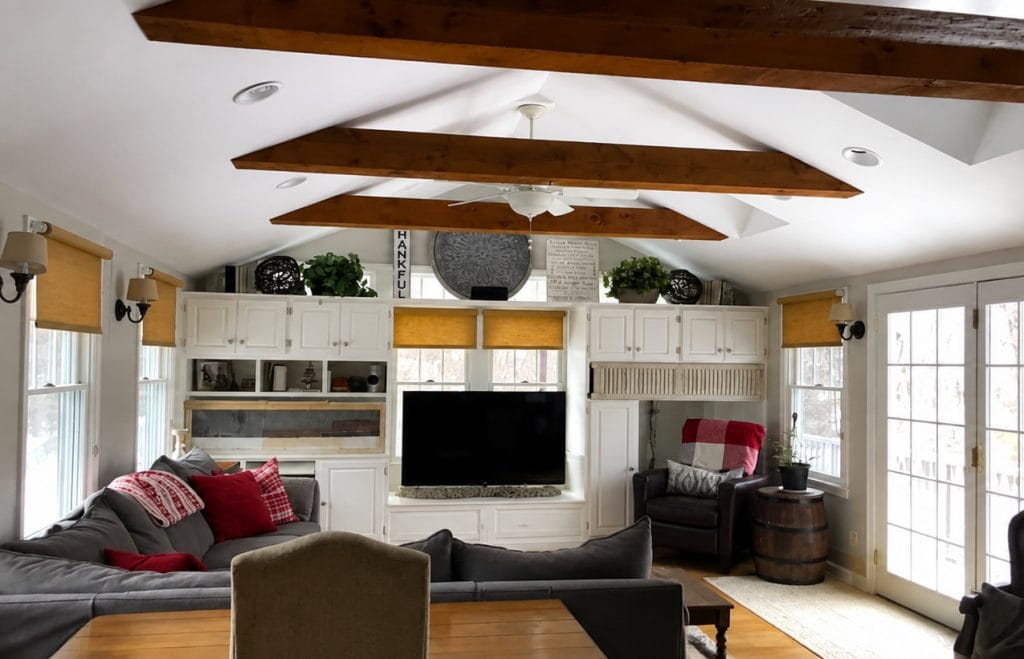

The photo below shows the actual room I used to create the scaled floor plan, so you can compare the real space with the drawings as we go.

How to Sketch a Room Before Drawing It to Scale

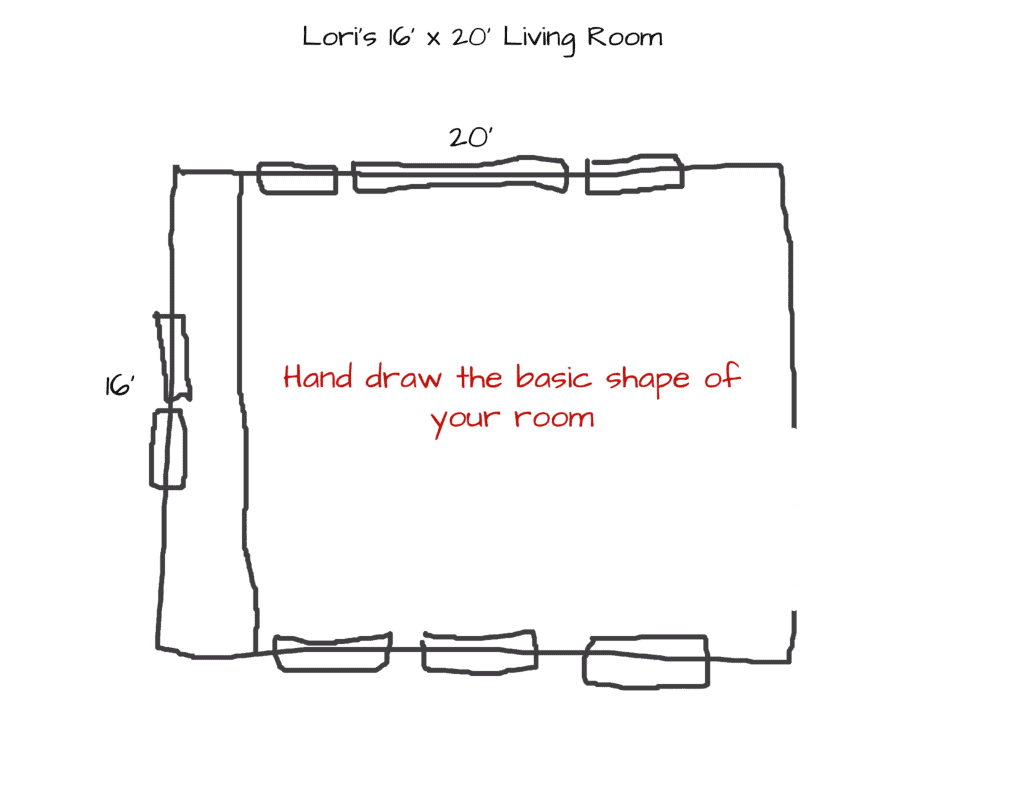

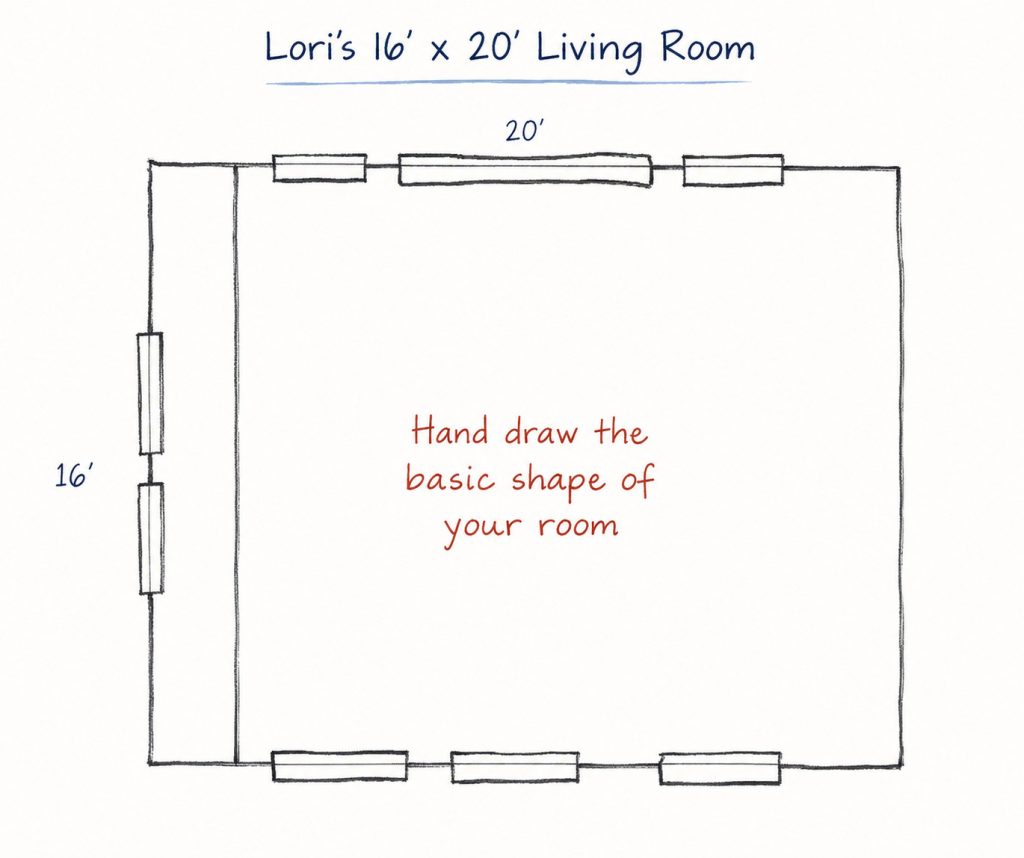

Before you draw your room to scale, start with a quick hand-drawn sketch of the basic room shape.

You don’t need a ruler for this part. Just use a pencil to sketch the walls and roughly mark where the doors, windows, built-ins, and other permanent features are located.

Don’t worry about making this sketch perfect or to scale. It’s simply a reference where you can record your measurements before creating the actual scaled floor plan.

Once your rough sketch is finished, we’ll measure the room and add those dimensions to the drawing.

How to measure your room

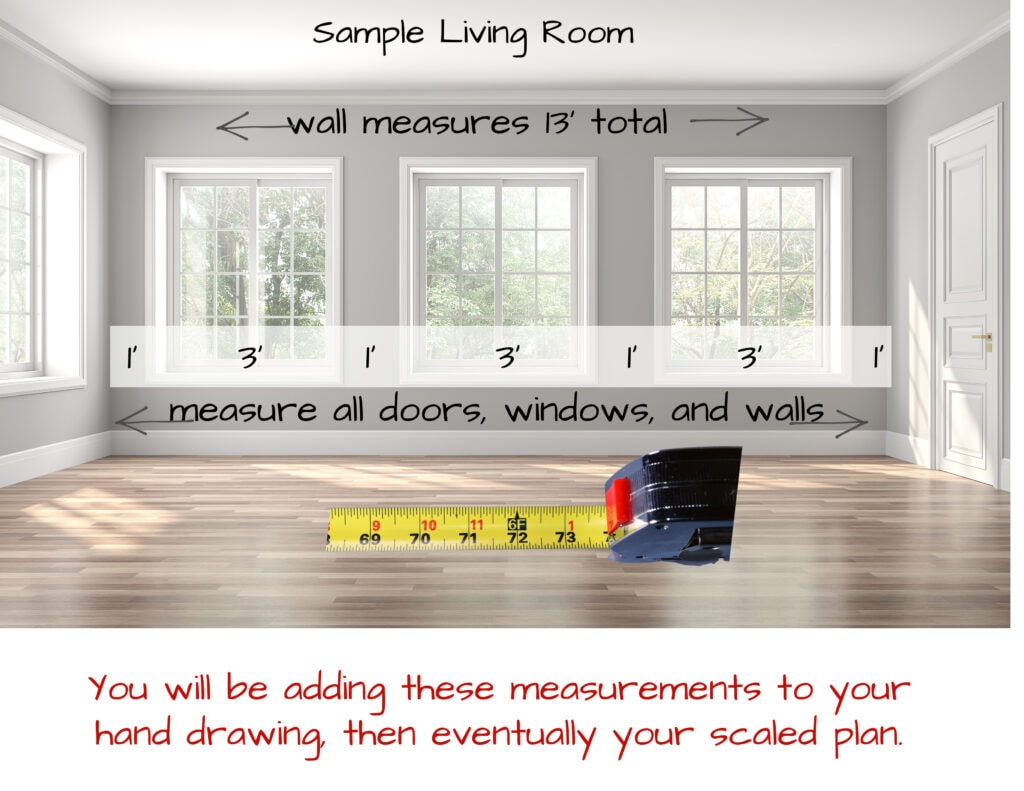

Start by using a tape measure to measure the full length of each wall from one end to the other. Record those overall wall measurements on your rough sketch in feet and inches.

Then go back and measure everything along each wall individually. Starting at one corner, measure the wall space to the first window, door, built-in, or other permanent feature. Write that measurement on your sketch, then measure the feature itself and continue working your way across the wall.

Be sure to include anything that could affect furniture placement, such as built-in cabinets, fireplaces, radiators, vents, or other permanent obstacles.

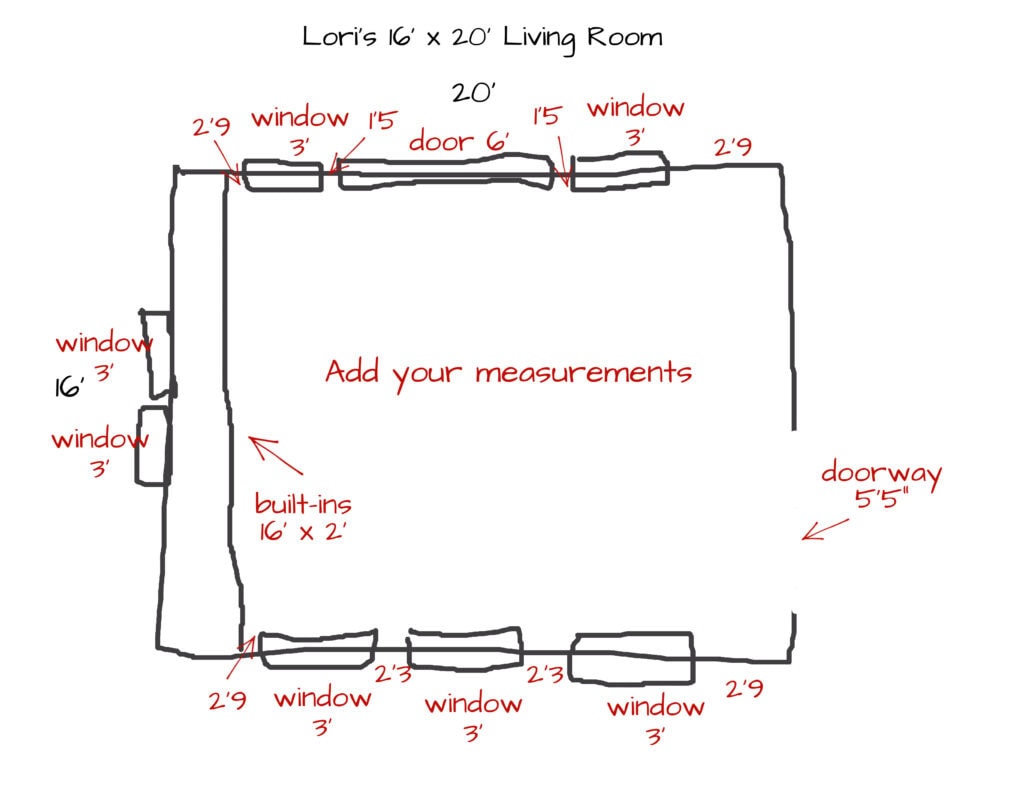

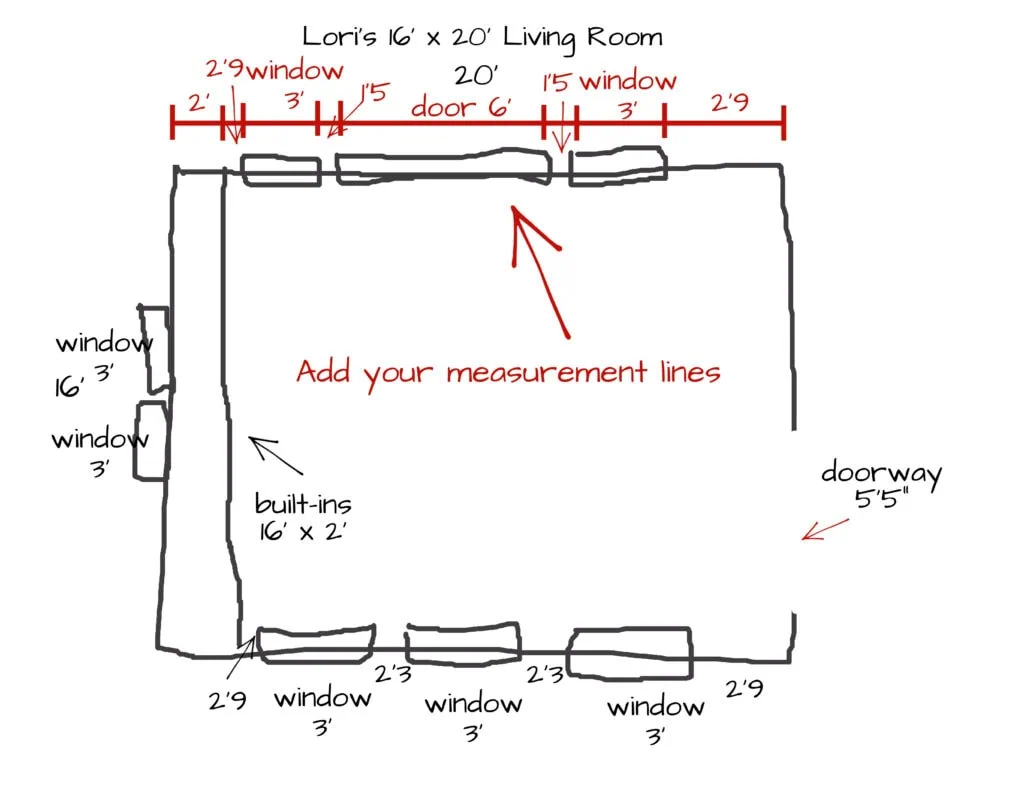

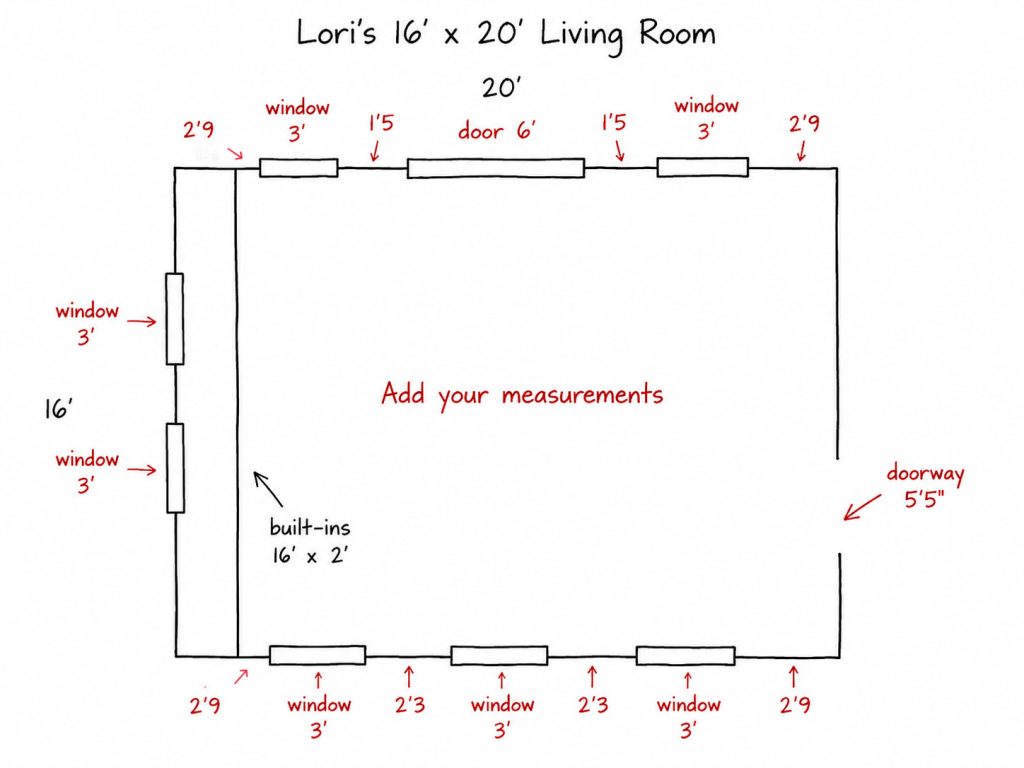

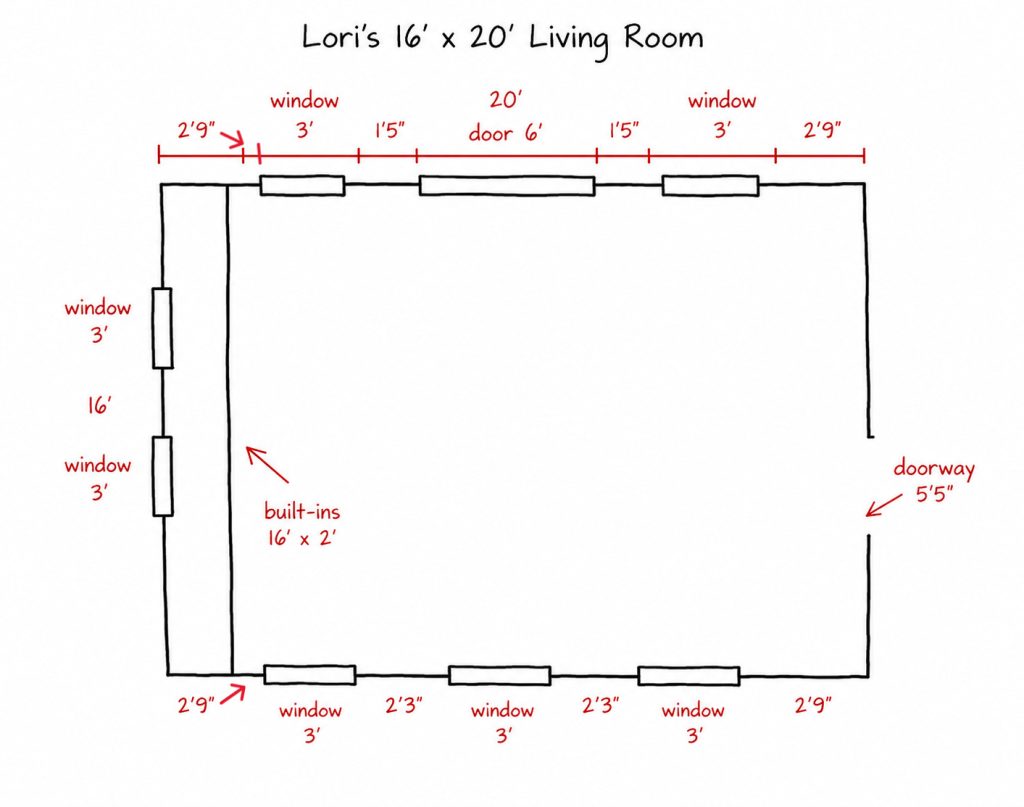

Mark those measurements on your plan. See image below.

Continue measuring and recording each section until you reach the opposite corner. When you’re finished, the smaller measurements across the wall should add up to the full wall measurement you took first.

On your sketch, use a dimension line with small perpendicular marks to show where each measurement starts and stops, like I’ve shown in the example below.

Repeat this process for every wall in the room.

Once all of your measurements are on the rough sketch, you’ll have everything you need to draw your room to scale. Next, we’ll transfer those measurements to graph paper and create the actual scaled floor plan.

How to Draw a Room to Scale on Graph Paper

One of the easiest ways to draw a room to scale is with graph paper. For this method, each square on the graph paper represents a specific amount of space in your actual room.

A simple scale to start with is 1 square = 1 foot. So if a wall measures 12 feet, you would draw it 12 squares long. If the wall measures 12′ 6″, you would draw it 12½ squares long.

The same idea applies to everything else in the room. A 3-foot-wide window would be 3 squares wide, and a 5-foot fireplace would be 5 squares wide.

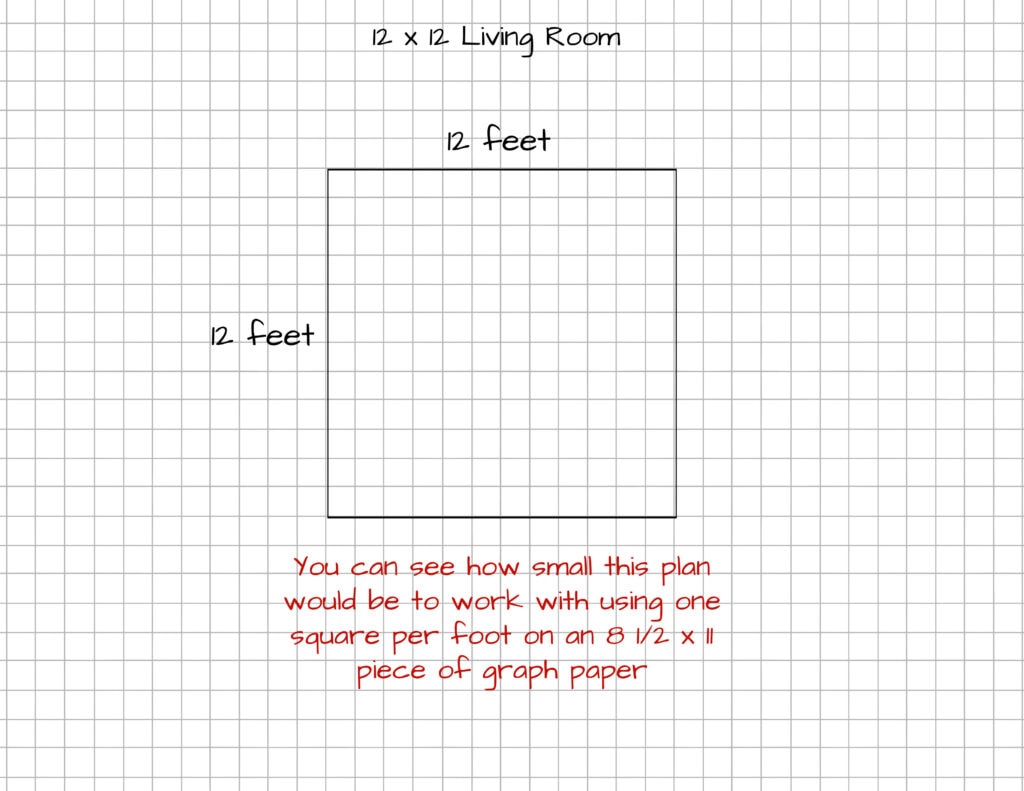

The only drawback to using one square per foot is that a smaller room can make a pretty small floor plan on the page. If you want more room to add details and arrange furniture, you can make your drawing larger by changing the scale.

Use 2 Squares Per Foot for a Larger Floor Plan

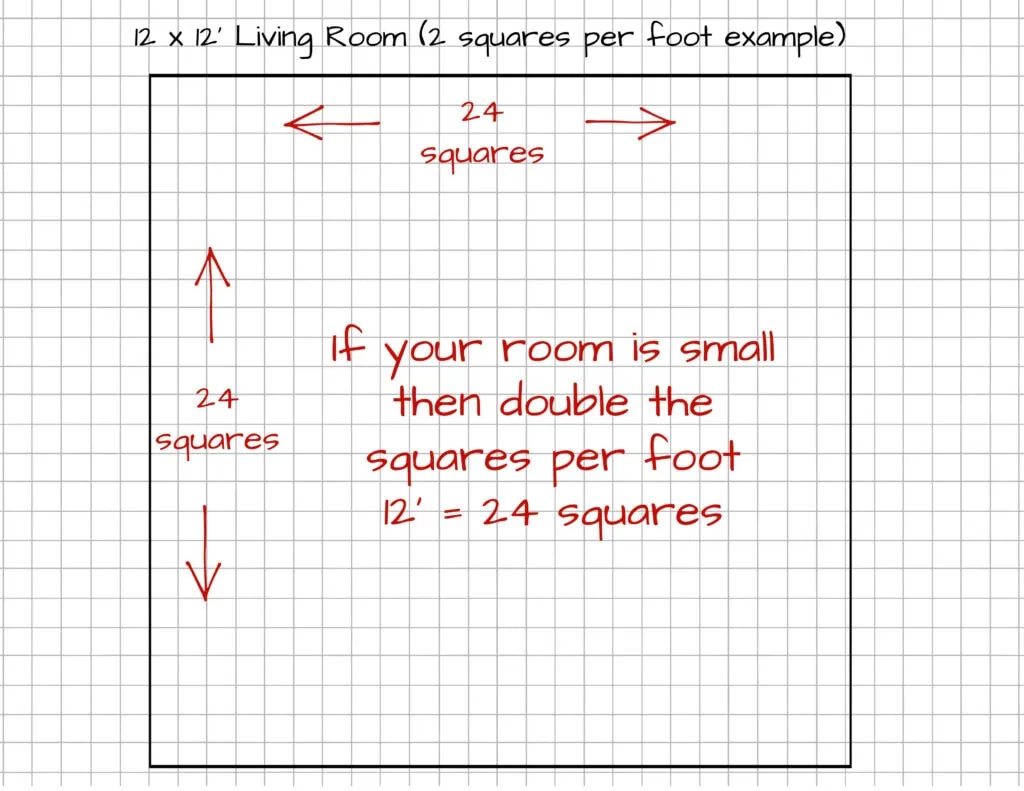

To make the plan easier to work with, draw the same 12′ × 12′ room using two squares per foot instead. That makes each 12-foot wall 24 squares long and gives you a much larger floor plan on an 8½” × 11″ sheet of graph paper.

Remember, if you double your room plan you will also have to double all the elements going into the room as well. Doors, windows, furniture, everything.

Enlarge your floor plan using a printer.

Another option is to draw your room using 1 square = 1 foot, then enlarge the finished floor plan with your printer or copier.

Before you enlarge it, make note of the percentage you use.

Important: Any furniture templates or other scaled pieces you add to the plan must be enlarged by the exact same percentage. Otherwise, the furniture and the room will no longer be at the same scale.

For example, if you enlarge your floor plan to 150%, enlarge your furniture templates to 150% too. I’ll show you how to make those furniture pieces later in the tutorial.

How to Transfer Your Hand-Drawn Measurements to Graph Paper

Now it’s time to take the measurements from your rough sketch and use them to draw your room to scale on graph paper.

I’m using my 16′ × 20′ living room as the example. If you’re using the 1 square = 1 foot scale, a 16-foot wall will be 16 squares long and a 20-foot wall will be 20 squares long.

Start by drawing the basic outline of your room with solid lines by using a ruler.

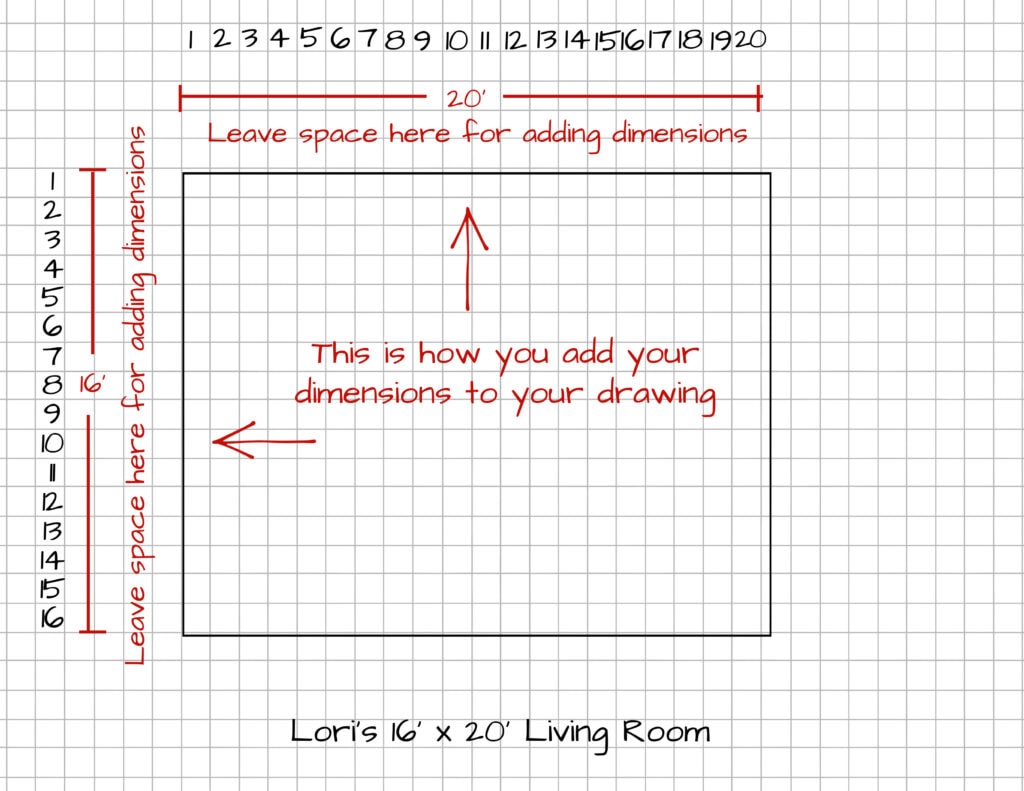

Next, add the overall wall measurements outside the room outline. Leave some space between the wall and the measurement line because we’ll use that area to add the individual measurements for windows, doors, and wall sections.

Repeat this for each wall until the basic shape and overall dimensions of your room are transferred to the graph paper.

The black numbers in the example are only there to show you how I counted the graph-paper squares. In this case, 20 squares = 20 feet. You do not need to write those numbers on your own floor plan.

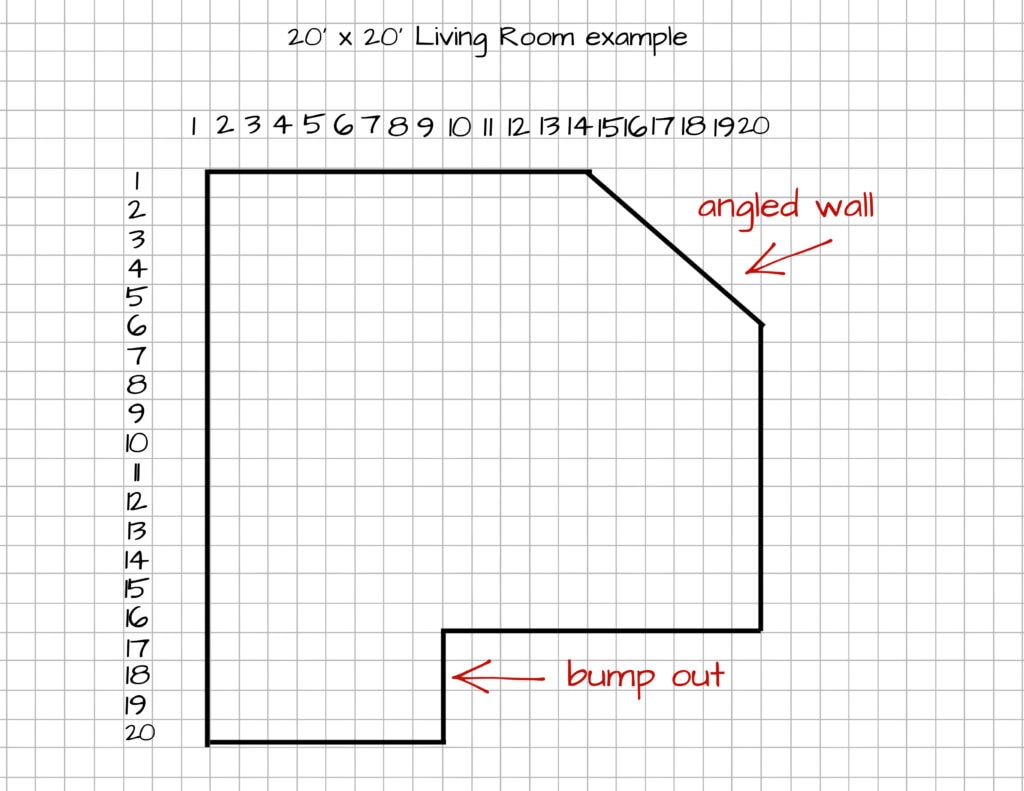

If your room isn’t a simple square or rectangle, draw the actual shape as closely as possible. Include any bump-outs, angled walls, alcoves, or other changes in the wall shape and keep them at the same scale as the rest of the room.

How to Draw Doors, Windows, and Permanent Features on a Floor Plan

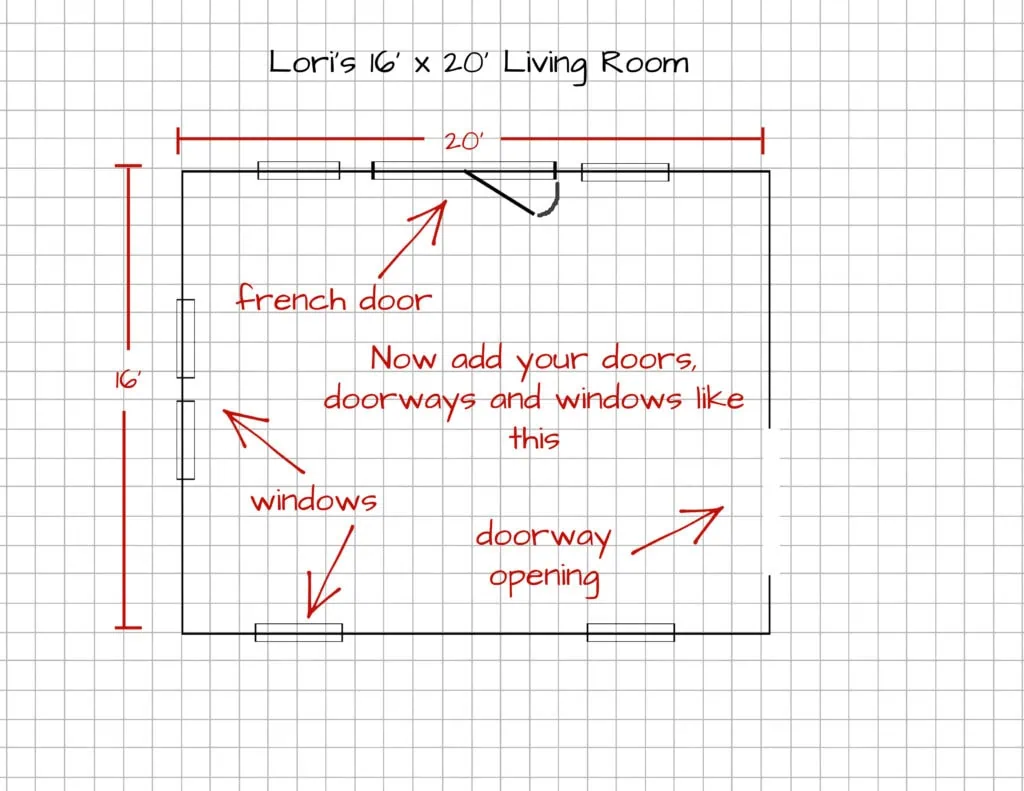

Now that the basic room shape is drawn to scale, add anything permanent that could affect your furniture layout. This includes doors, windows, built-in cabinets, fireplaces, stairs, radiators, vents, and other fixed features.

Use the measurements from your rough sketch to place each feature in the correct location on your scaled floor plan.

For example, if you’re using 1 square = 1 foot, a 3-foot window would be 3 squares wide. If you’re using 2 squares = 1 foot, that same window would be 6 squares wide.

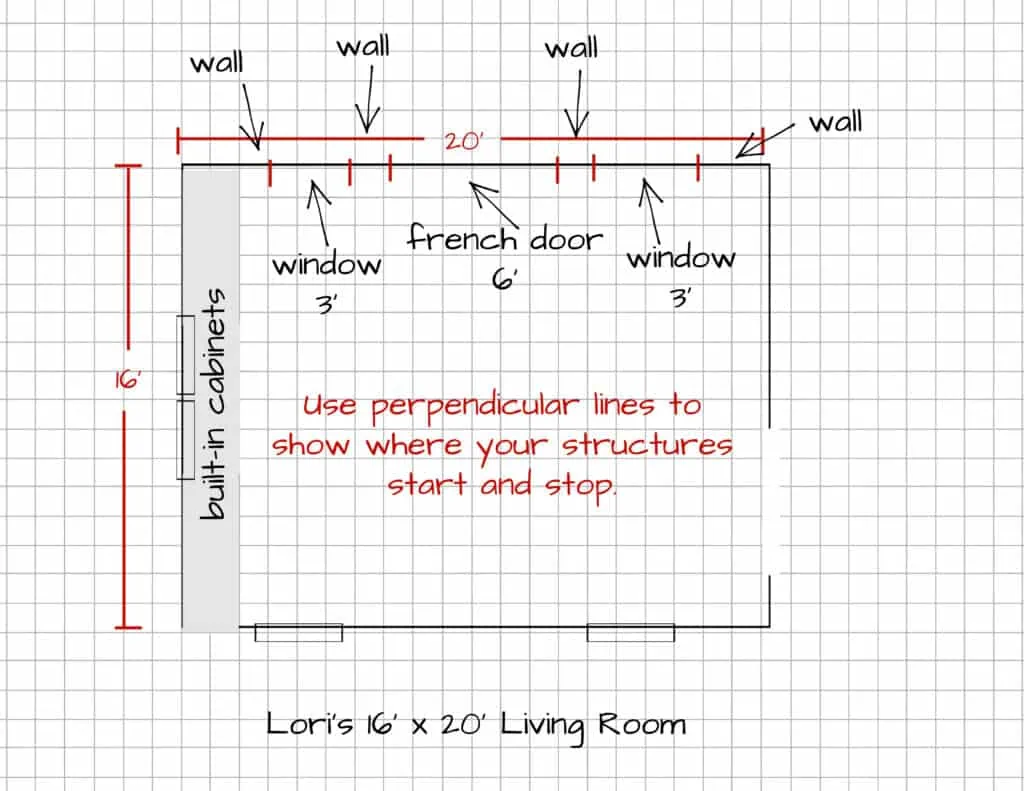

Use dimension lines and small perpendicular marks to show where each wall section, window, door, or other feature starts and stops. This makes it much easier to keep all of your measurements accurate.

You can draw these features yourself using the simple methods I described, or use a drafting template if you prefer. If you use a template, make sure it matches the scale you’re using for your floor plan.

Next, I’ll show you how to draw windows, doors, fireplaces, and stairs so they’re easy to recognize on your finished plan.

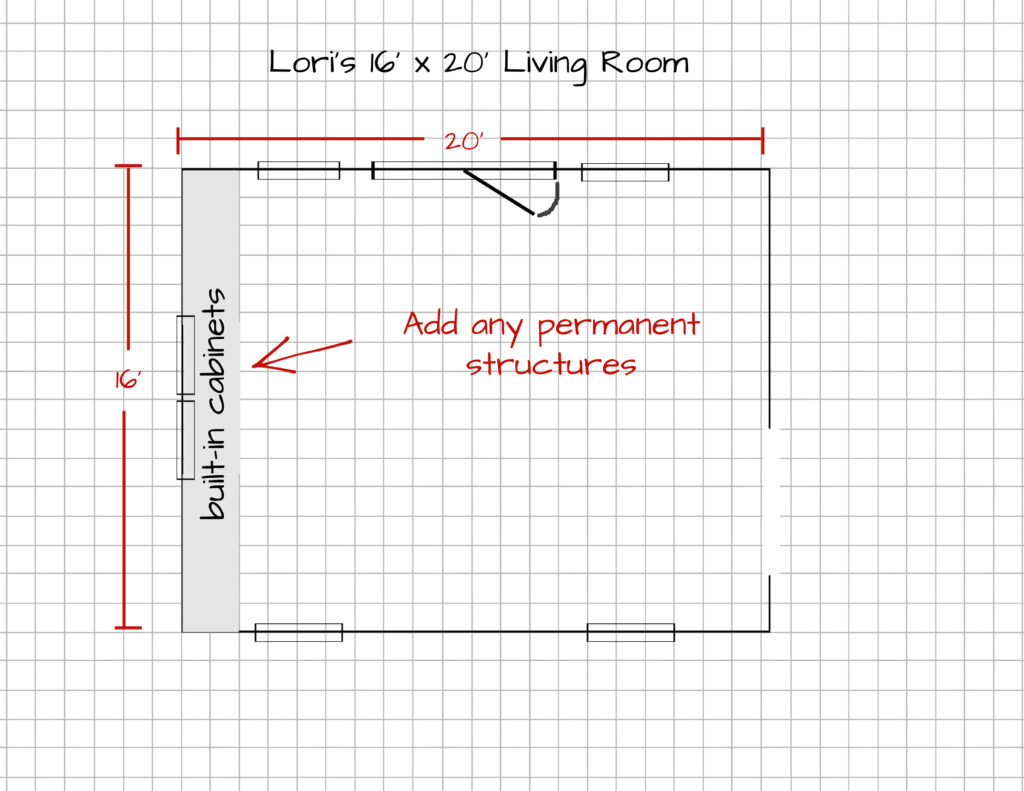

My living room has built-in cabinets that run almost the full length of one wall and stop just before the two side windows.

Because the built-ins are permanent and affect furniture placement, I need to include them on the scaled floor plan. Mine measure 2 feet deep by 16 feet long, so I draw them using the same scale as the rest of the room.

You can see in the example below how the graph-paper squares make it easy to place the built-ins accurately.

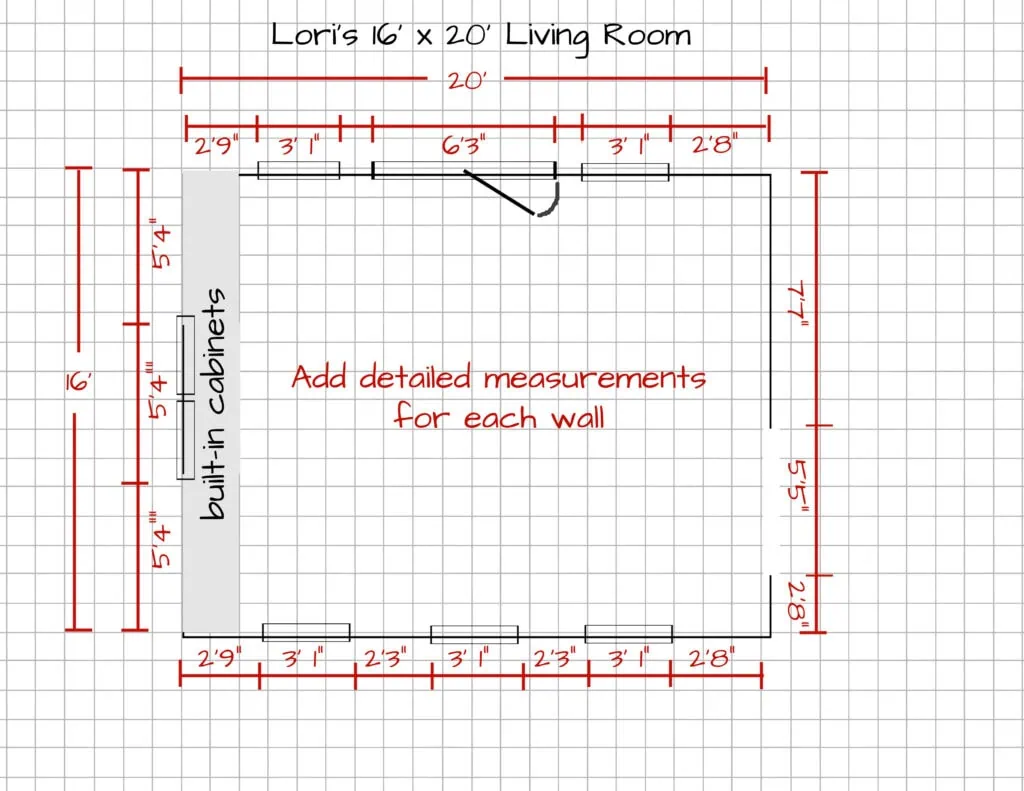

In the example below, you can see how I added the detailed measurements for each section of the wall. Starting at the right side of the bottom wall and working toward the left, I have 2’8″ of wall space, a 3’1″ window, 2’3″ of wall, another 3’1″ window, 2’3″ of wall, a third 3’1″ window, and 2’9″ of wall space before reaching the built-in cabinets.

Breaking the wall down this way shows exactly where each window and permanent feature belongs on the scaled floor plan.

Hint: If you add up all of the individual measurements along a wall, they should equal the full wall measurement. If they don’t, go back and double-check your numbers before moving on.

For basic furniture planning, your drawing doesn’t have to be perfect down to the last inch. If the overall wall measurement is off by an inch or two, it usually won’t make much difference when you’re simply testing furniture placement.

But accuracy matters much more when you’re planning something that has to fit into a tight space, such as cabinetry, appliances, or bathroom fixtures. In those situations, take precise measurements and consider having a professional create or verify the plans before ordering or installing anything.

For living rooms, bedrooms, dining rooms, and other furniture-layout projects, a hand-drawn scaled floor plan is usually more than enough to help you see what will fit and where.

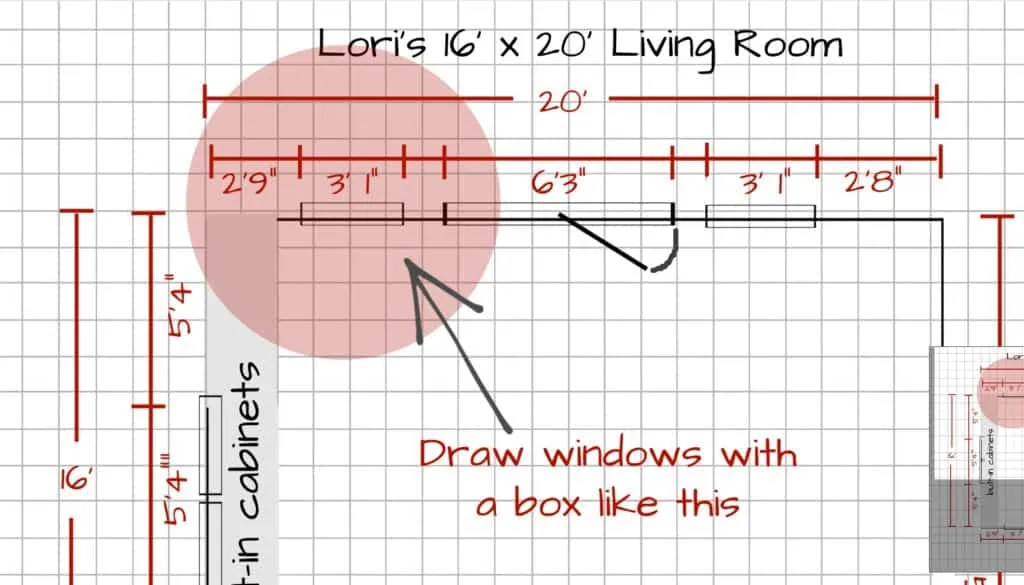

How to draw windows on a floor plan

Once you’ve marked the location and width of each window, you can make it easier to recognize on your floor plan.

Draw a second line just inside the wall and another just outside the wall, connecting the perpendicular measurement marks on each side of the window. The finished window will look like a narrow box with the wall line running through the middle.

The example below shows exactly what I mean.

How to draw doors and door openings on a floor plan

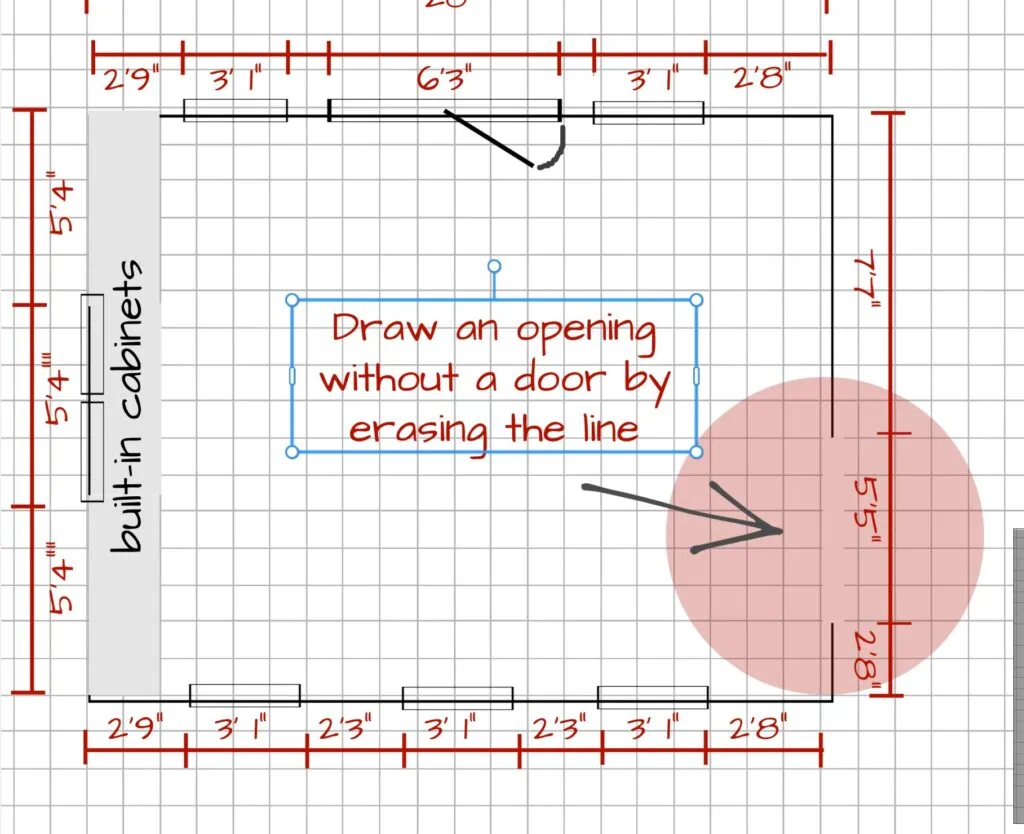

If you’re drawing a doorway or wall opening without a door, mark where the opening starts and ends with small perpendicular lines.

Then erase the wall line between those marks to show the open doorway on your floor plan.

That’s all you need for an opening without an actual door.

If the opening has an actual door, add the door swing to your floor plan. Draw a straight line to represent the door and a curved line to show the direction it swings.

This is important because the door needs enough clearance to open and close. Showing the swing on your floor plan helps you avoid placing furniture where it will block the door.

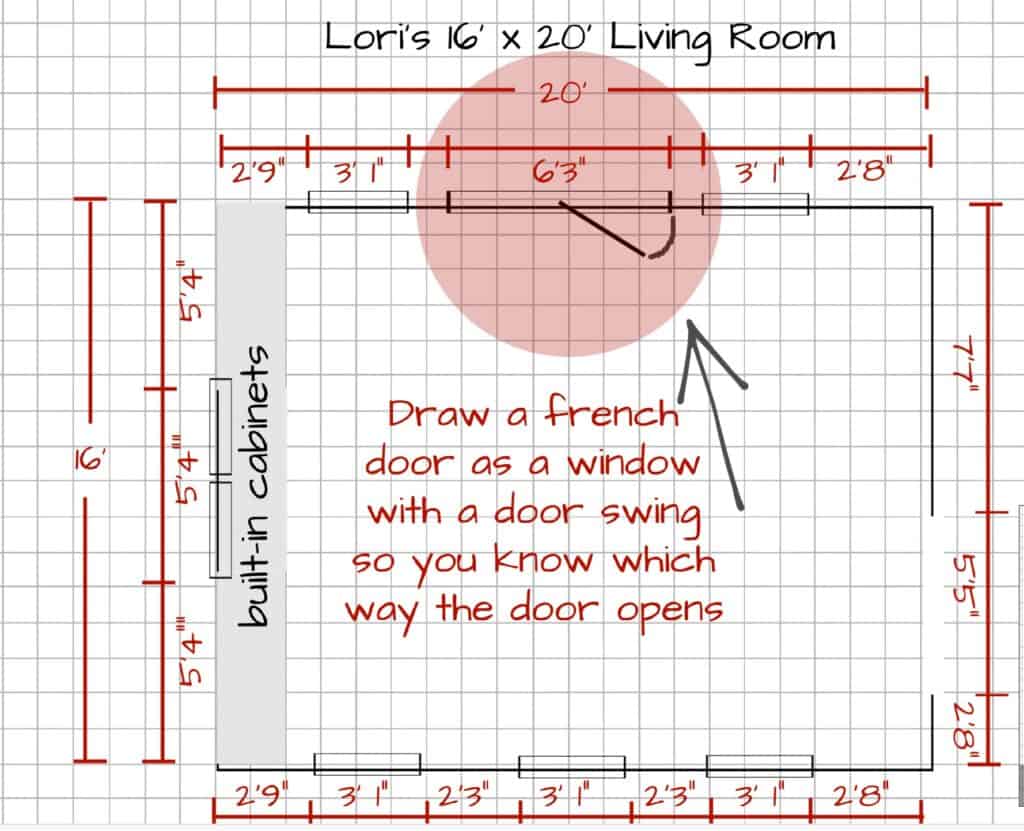

The example below shows my patio door. Because it has glass panes, I draw them much like windows and then add the door swing. For a solid door, simply leave an opening in the wall and add the straight and curved lines to show how the door opens.

If you have double doors, draw both door panels and show the swing for each one. Many double doors open from the center, but draw yours the way they actually operate in the room.

How to draw a fireplace on a floor plan

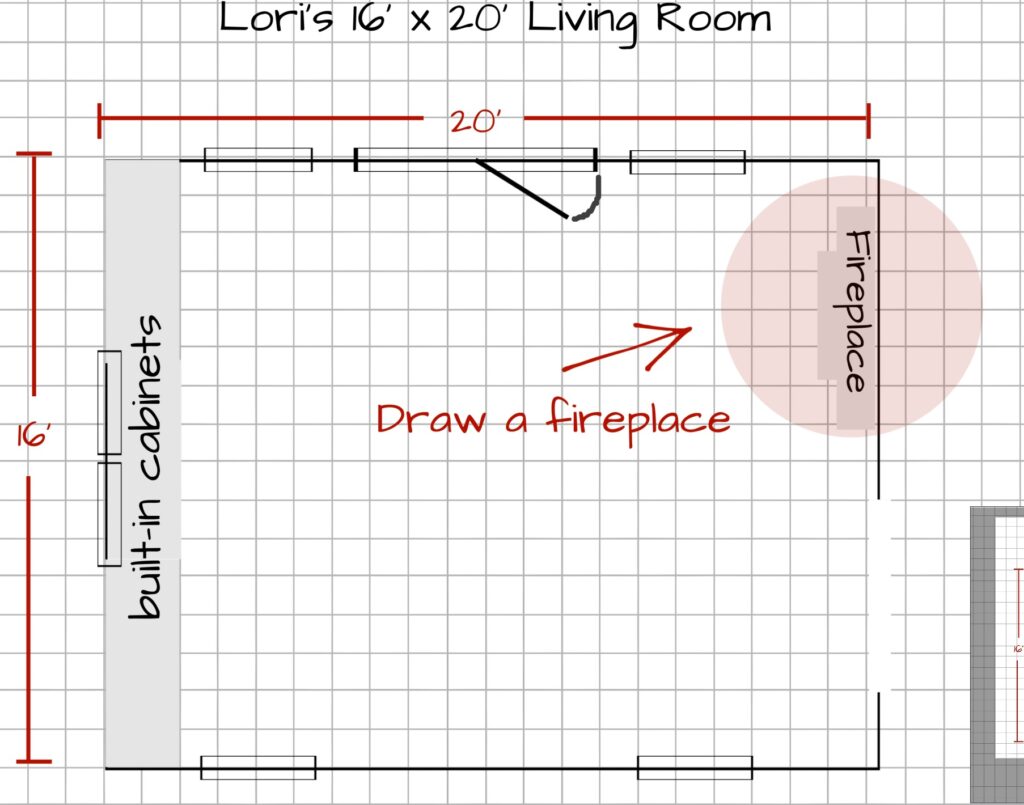

To add a fireplace to your floor plan, draw its basic shape in the correct location and use your measurements to keep it at the same scale as the rest of the room.

Your fireplace may look completely different from mine, and that’s okay. For furniture planning, the important part is getting the width, depth, and location right so you know how much space it takes up.

Don’t worry about making the drawing look exactly like the real fireplace. A simple shape is all you need.

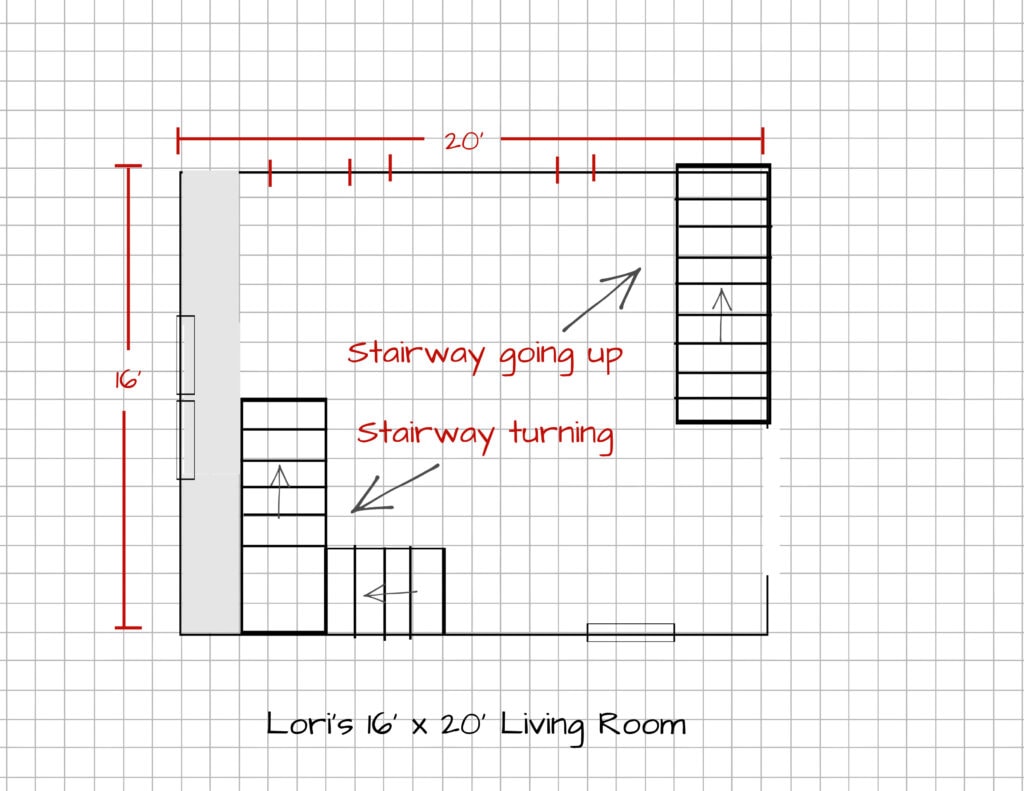

How to draw stairs on a floor plan

To show a staircase on your floor plan, start by drawing a rectangle that represents the size and location of the stairs.

Add evenly spaced lines inside the rectangle to represent the individual steps. Then add an arrow to show the direction the stairs travel.

If the staircase turns or changes direction, draw each section separately so the shape matches the actual stairs as closely as possible.

Now that you’ve measured your room and created a scaled floor plan on graph paper, the next step will be measuring and drawing your furniture to scale too. We’ll get to that in a minute.

First, I want to show you another way to draw a room to scale using plain paper, a ruler, and a pencil.

You can use a regular ruler for this method, so there’s no need to buy anything special. An architectural scale ruler can make the process easier because several common scales are built right into it, but it’s completely optional.

How to Draw a Room to Scale With Plain Paper, a Ruler, and a Pencil

Graph paper is probably the easiest method when you’re first learning how to draw a room to scale, but you can also do it with plain paper and a ruler.

For this method, you’ll convert your room measurements to a smaller scale and draw them with a ruler. One simple option is to let 1 inch on paper represent 1 foot in the room.

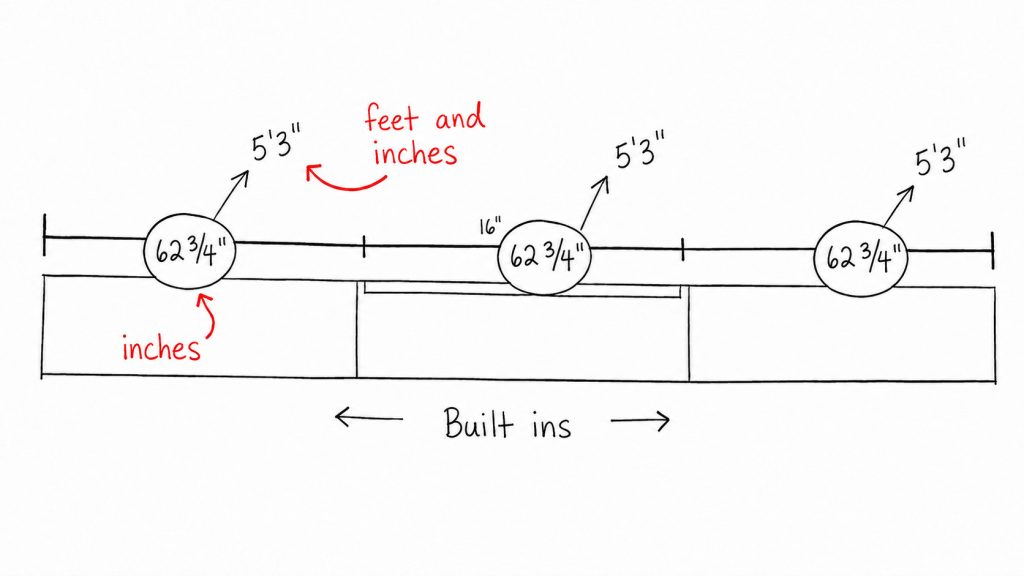

Because room measurements are usually written in feet and inches, while a ruler may use fractions or decimals, the converted measurement may not come out perfectly exact. That’s okay for basic furniture planning.

For example, a wall that measures 6’3″ would be about 6.25″ on paper. If you round that to 6.3″, the difference is tiny and won’t affect a basic furniture layout.

The important thing is to use the same scale consistently for your walls, windows, doors, built-ins, and furniture so everything stays proportional.

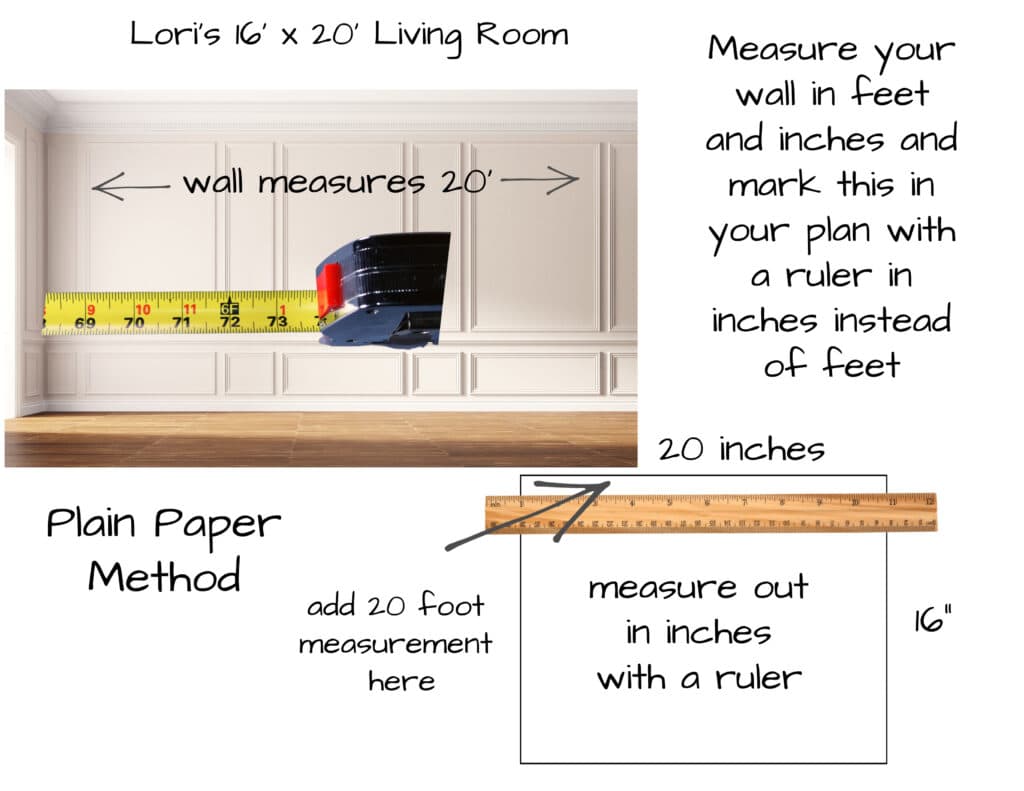

With the plain-paper method, you’re going to convert your room measurements from feet and inches into inches and fractions of an inch on your drawing.

I know that sounds a little confusing after we just talked about recording your measurements in feet and inches. Hang in there — it’s easier than it sounds!

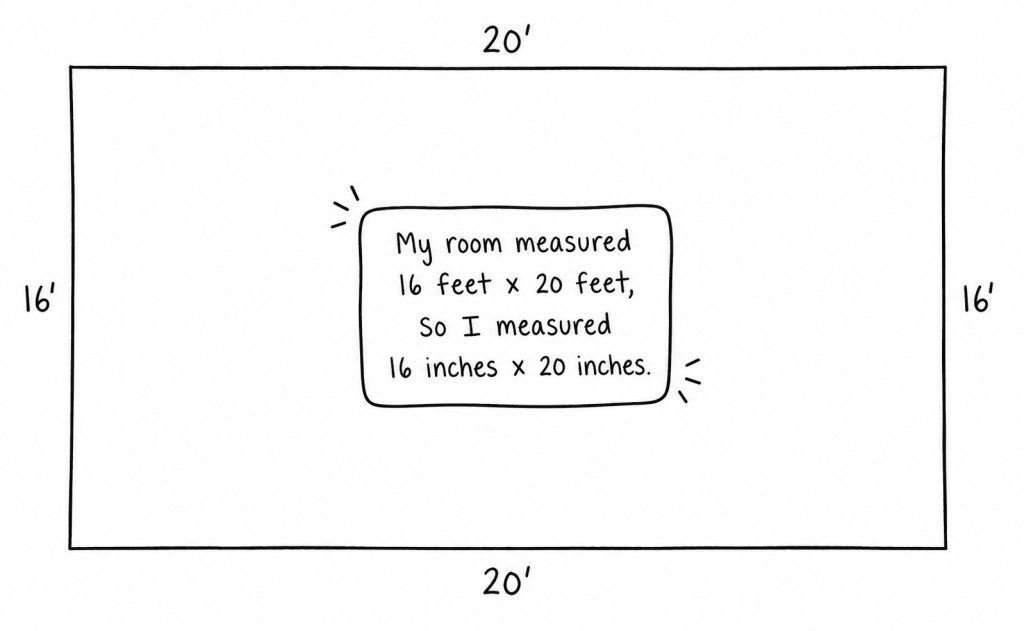

Remember, for this method we’re using a simple scale of 1 inch on paper = 1 foot in the actual room.

So if a wall measures 12’6″, you would draw a line 12½ inches long. The 12 feet becomes 12 inches on your drawing, and the extra 6 inches becomes ½ inch.

Room measurements don’t always convert into a nice, exact fraction on your ruler. If you end up with an awkward decimal, it’s okay to round slightly for a basic furniture-planning floor plan. Just use the same method consistently throughout your drawing.

Repeat this process for every wall, window, doorway, built-in, and other permanent feature.

What you’re really doing is shrinking the room down while keeping everything in proportion.

If a 1″ = 1′ scale makes your drawing too large, you can also choose a smaller scale. For example, ¼” on paper can represent 1 foot in the actual room.

An architect’s scale ruler makes this easier because it has several common drawing scales built into it. If you choose a ¼” = 1′ scale, simply use the side of the ruler marked ¼”. Just remember that whatever scale you choose must be used consistently for the walls, windows, doors, built-ins, and furniture.

How to Transfer Room Measurements to a Scaled Floor Plan

Now take the measurements from your hand-drawn sketch and transfer the doors, windows, built-ins, and other permanent features onto your new scaled plain paper drawing.

You’ll follow the same basic process you used with the graph-paper method. The difference is that instead of counting squares, you’ll use a ruler to measure each scaled distance on plain paper.

Starting at one end of a wall, transfer each measurement in order so every wall section, window, door, and permanent feature stays in the correct location.

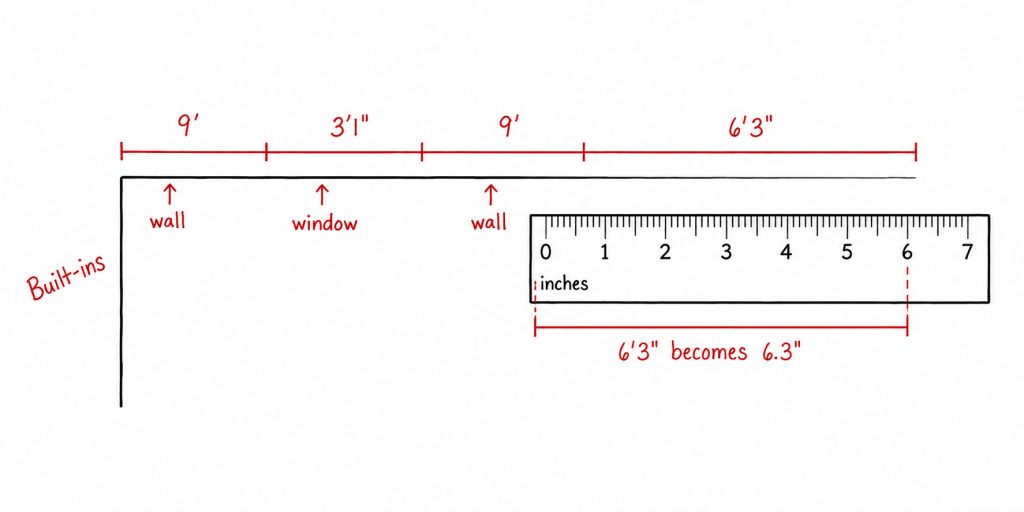

In the example below, my French door measures 6’3″ in the actual room. Using the scale we chose, that converts to about 6.25 inches on paper, which I rounded to 6.3 inches for this furniture-planning floor plan. I marked where that measurement begins and ends with perpendicular lines.

Continue working your way across each wall until all of the measurements have been transferred.

Write the actual room measurements on your finished floor plan, even though the lines themselves are drawn at the smaller scale. For example, the scaled line may measure about 6.3 inches on the paper, but I still label it 6’3″ because that is the real measurement of the door.

Repeat this process for every wall, window, door, built-in, and other permanent feature.

This is definitely harder than using the graph paper. But once you get the hang of it, it’s not so bad. I highly recommend starting with graph paper for the first time.

How to draw furniture to scale

Measure the Furniture in Your Room

Once your room is drawn to scale, measure the furniture and other items you want to include in the layout. This might include sofas, chairs, tables, rugs, desks, floor lamps, or large plants.

If you’re using furniture you already own, measure the width and depth of each piece just like you measured the room. Then convert those measurements using the same scale as your floor plan.

For example, if your sofa is 7′ long × 3′ deep:

• With the plain-paper method using 1″ = 1′, your scaled sofa would be 7″ × 3″.
• With graph paper using 1 square = 1′, it would be 7 squares × 3 squares.
• With graph paper using 2 squares = 1′, it would be 14 squares × 6 squares.

If you’re shopping for new furniture, use the product measurements to make a scaled template before you buy it. This is one of the easiest ways to see whether a piece will actually fit your room and work with the rest of the layout.

Important: Your room and furniture must always use the same scale. Otherwise, the pieces won’t be proportional and your layout won’t be accurate.

If you enlarged your floor plan with a printer or copier, enlarge your furniture templates by the same percentage before using them on the plan.

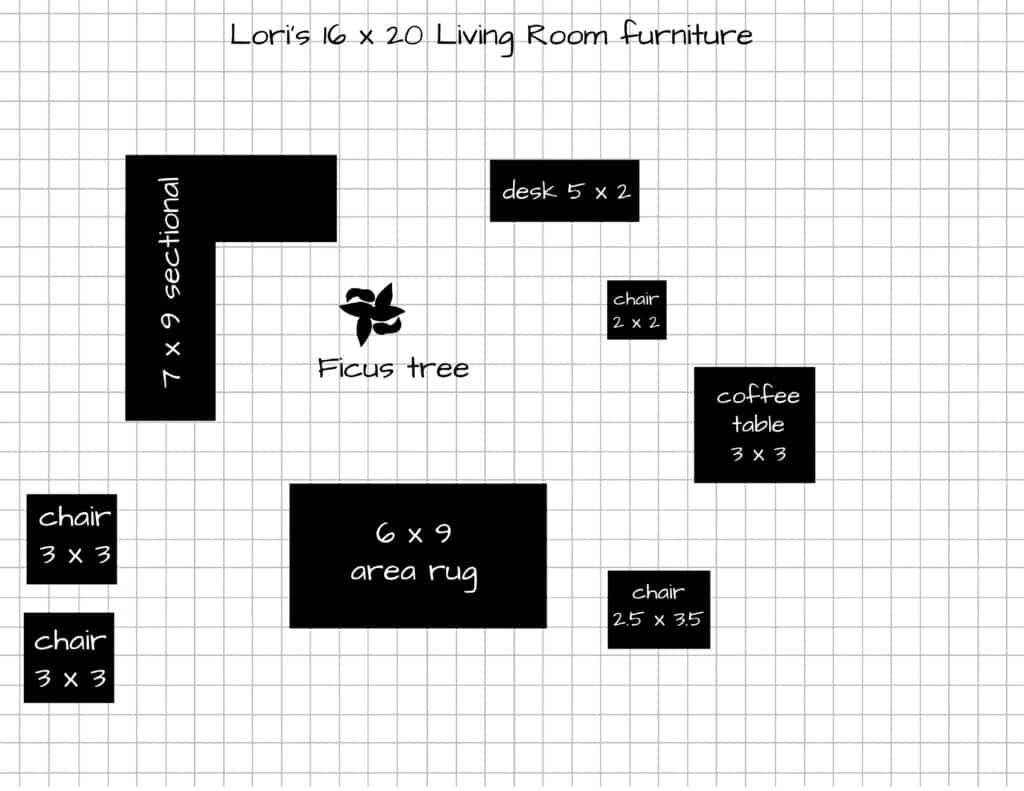

Transfer Furniture Measurements to Your Scaled Floor Plan

Draw each piece of furniture on a separate sheet of plain paper or graph paper, using the same scale as your room. Label each piece so you know what it represents.

Then cut out the furniture pieces so you can move them around on your floor plan and try different layouts.

Remember: If you drew your room using 2 squares per foot, your furniture must also use 2 squares per foot. The room and furniture need to stay at the same scale or the layout won’t be accurate.

Make sure to label each furniture piece so you know what it represents.

I know I keep saying this but it is so important:

If you enlarged your floor plan with a printer or copier, enlarge your furniture template page by the same percentage before cutting out the pieces.

Need help drawing the furniture shapes? You can also use floor plan templates. Just make sure the template uses the same scale as your floor plan.

For example, common architectural scales include ¼” = 1′, ½” = 1′, and ⅛” = 1′. If your floor plan is drawn at ¼” = 1′, use furniture templates made for that same ¼” = 1′ scale.

The important part is that the room and the furniture always use the same scale so everything stays proportional.

How to Use Your Scaled Floor Plan to Arrange Furniture

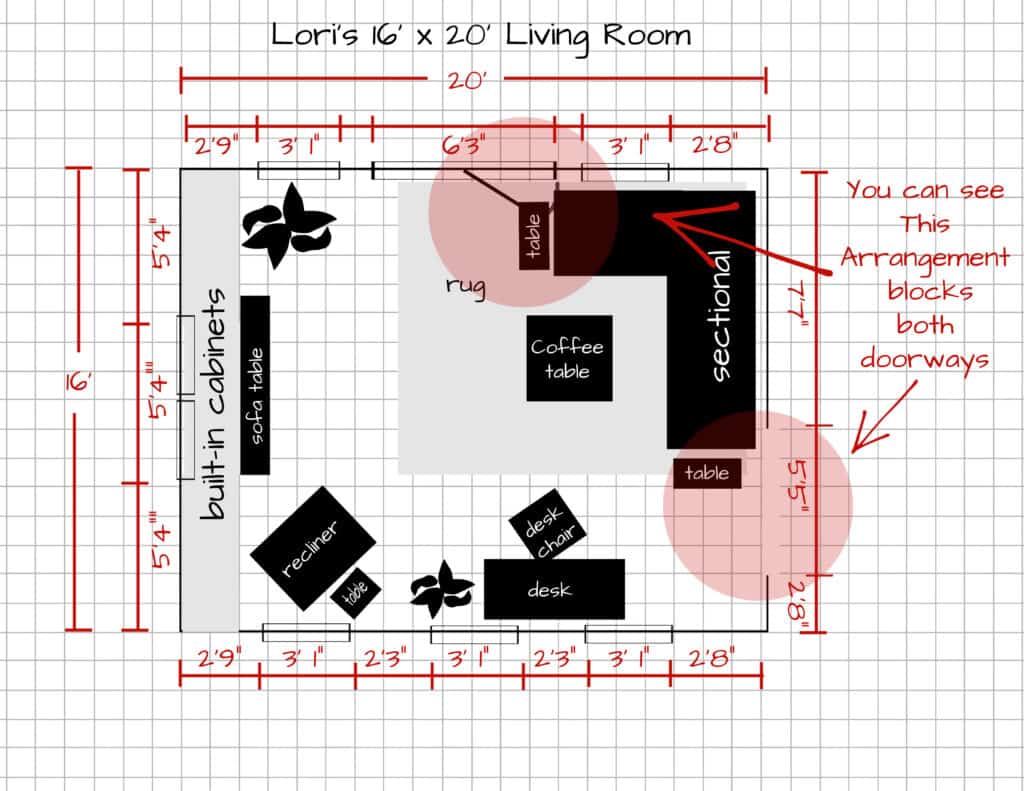

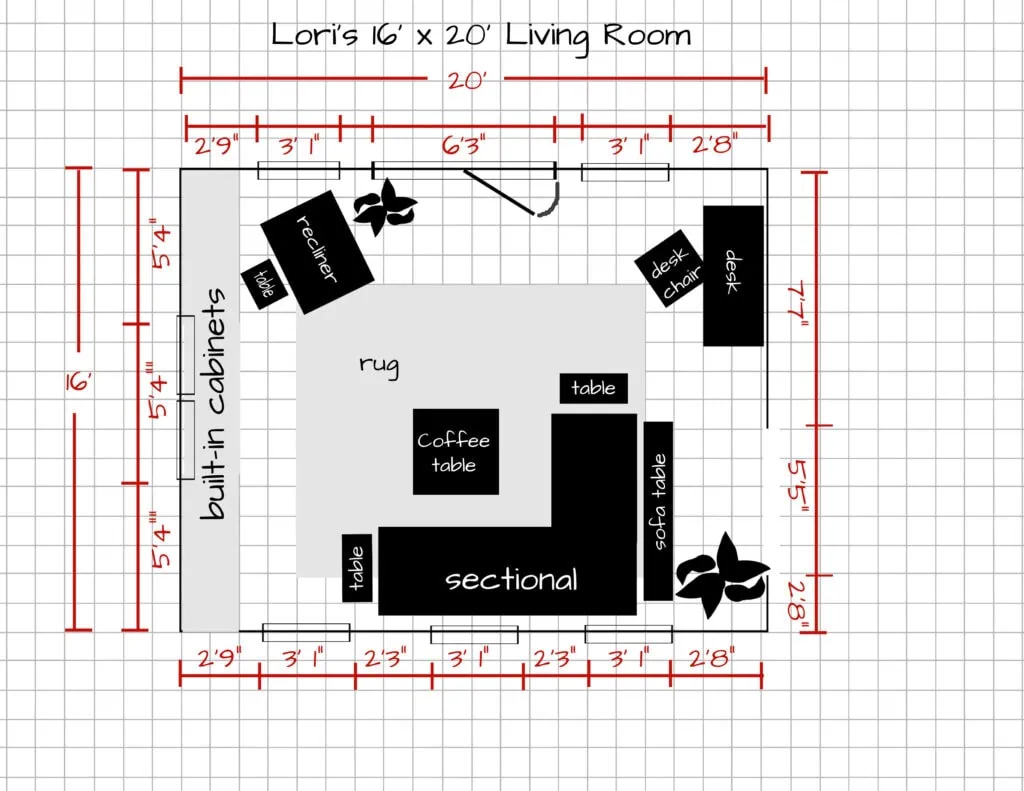

Now that your room and furniture are both drawn to the same scale, you can start testing different furniture arrangements.

Move the cutout furniture pieces around on your floor plan until you find a layout that works for the room.

As you experiment, pay attention to:

• Traffic flow: Make sure there’s enough room to walk through the space comfortably.
• Doorways and door swings: Keep furniture from blocking entrances or the path of a swinging door.
• Focal points: Arrange seating so it makes sense with the main focal point, such as a fireplace, TV, or view.
• Balance: Try not to crowd all of the large furniture onto one side of the room.
• Function: Think about how you actually use the room and whether the layout makes everyday activities easier.

This is the fun part because you can try as many arrangements as you want without moving a single piece of real furniture, and see exactly how all of your furniture will fit into the room

Common Mistakes When Drawing a Room to Scale

• Changing scales halfway through. Use the same scale for the room, doors, windows, and furniture so everything fits together accurately.
• Forgetting the door swing. A door may technically fit on your plan, but you also need enough space for it to open.
• Measuring only the walls. Include the exact location and width of windows, doorways, fireplaces, built-ins, and other permanent features. (See next mistake)
• Forgetting obstacles that affect furniture placement. Floor vents, radiators, outlets, baseboard heaters, and similar features can change where furniture can realistically go.
• Estimating furniture size. Measure the actual furniture—or the dimensions of furniture you’re thinking about buying—rather than guessing.

Final Tips for Using Your Scaled Floor Plan

When you draw floor plans to scale it will save you so much time and frustration when decorating or shopping for your room.  Keep your plan safe and the next time you get the decorating bug you can pull it out and play around with ideas to your hearts content.

If you decide you want learn how to draw a floor plan to scale online, try using a digital floor plan program. Room Sketcher is a good one to start with and it’s free.
